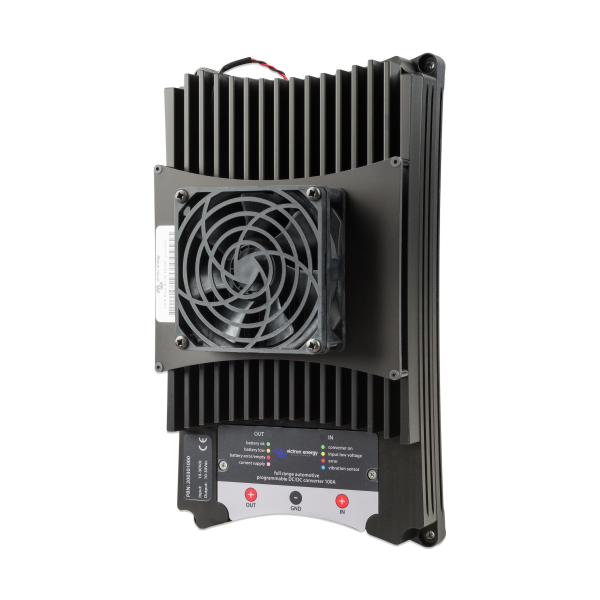

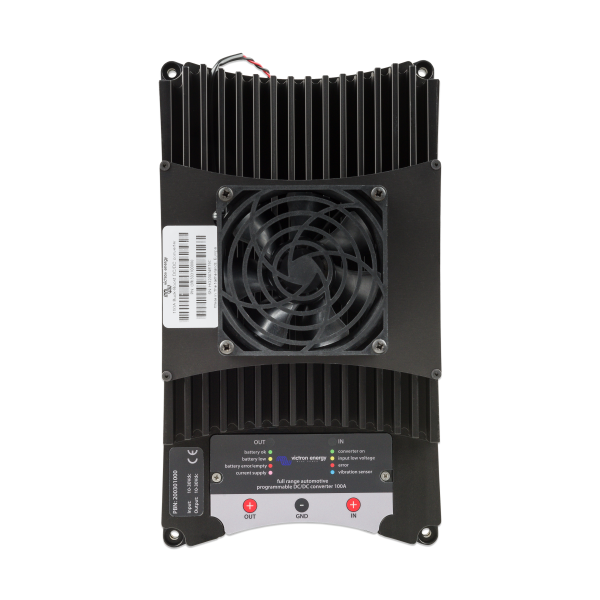

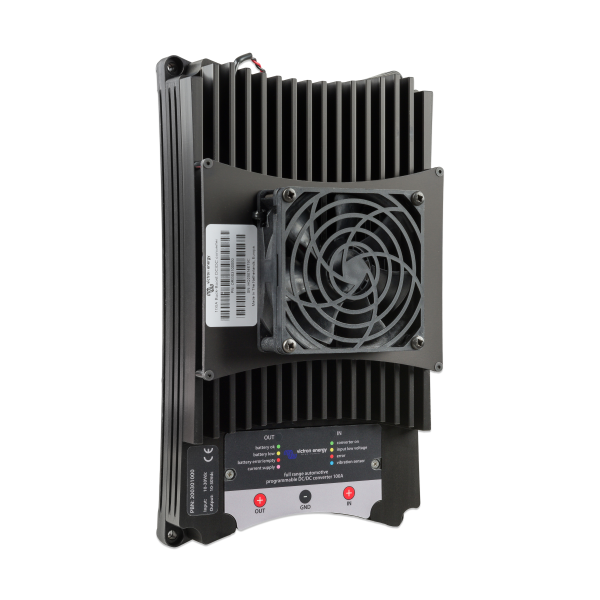

100A Buck-Boost DC/DC converter
$ 5.754.840 Incluye IVA
Incluye IVA
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.
The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.
| Peso | 10,4 lbs |
|---|---|
| Dimensiones | 7,1 × 12,4 × 4,5 in |
| Input Voltage Range | [10, 30] V |
| Output Voltage Range | [10, 30] V |
| Maximum Output Current12 V | 100 A |
| Maximum Output Current24 V | 50 A |
| Standby Current Consumption | 7 mA |
| Programable | 1 |
| Remote On Off Terminal | 1 |
| Temperature Sensor | Optional (ASS000200100 – CAN-bus Temp. Sensor) |
| Dc Connection Terminal Type | M8 bolts |
| Relay Terminal Connection1 | Screw terminal two pole |
| Material | Aluminium |
| Weight | 4.1 kg |
| Height | 288 mm |
| Width | 162 mm |
| Depth | 95 mm |
