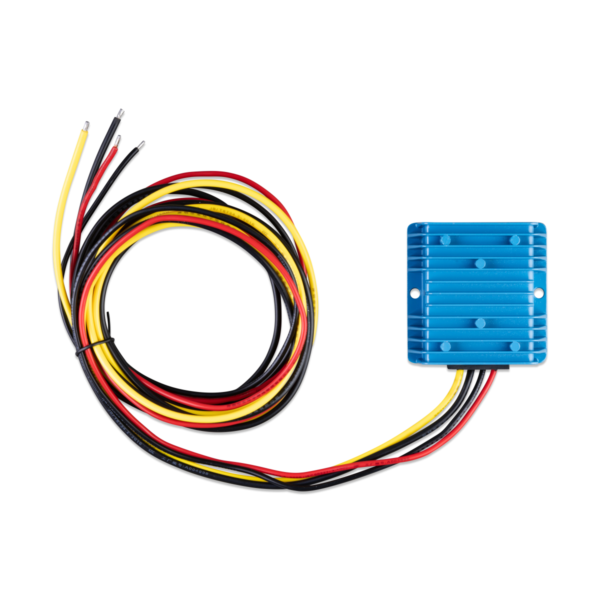

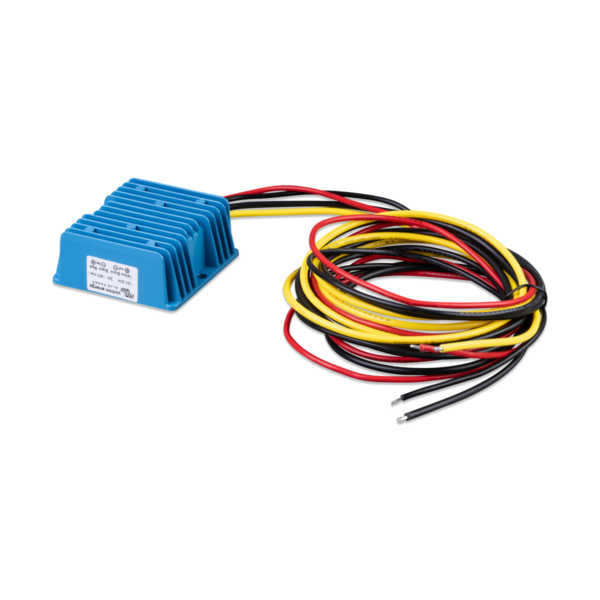

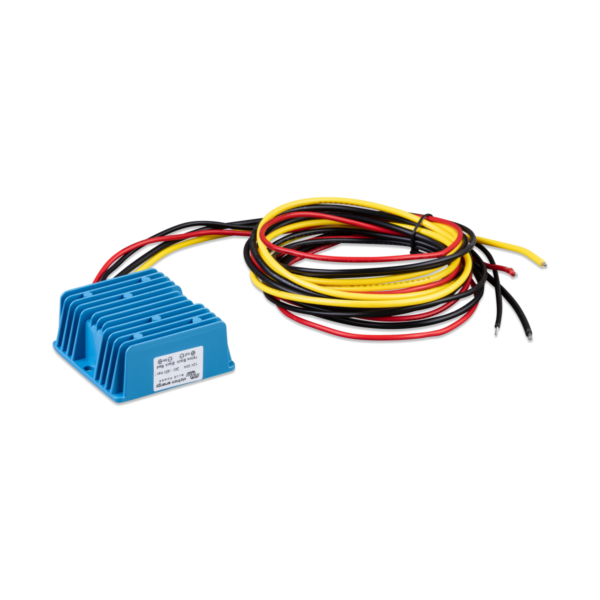

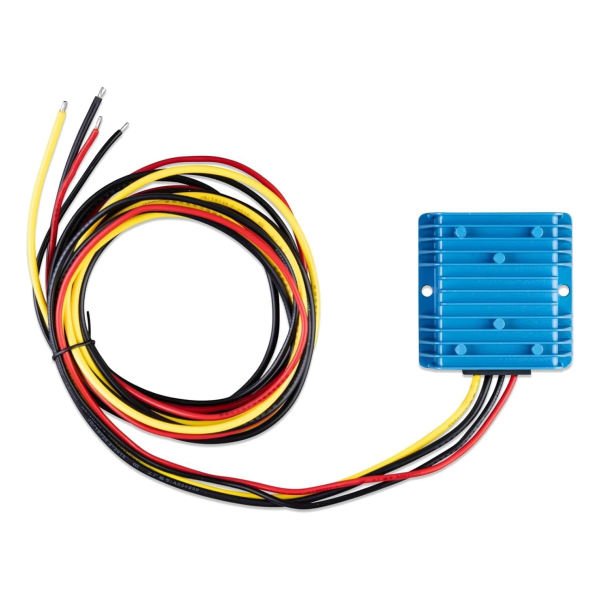

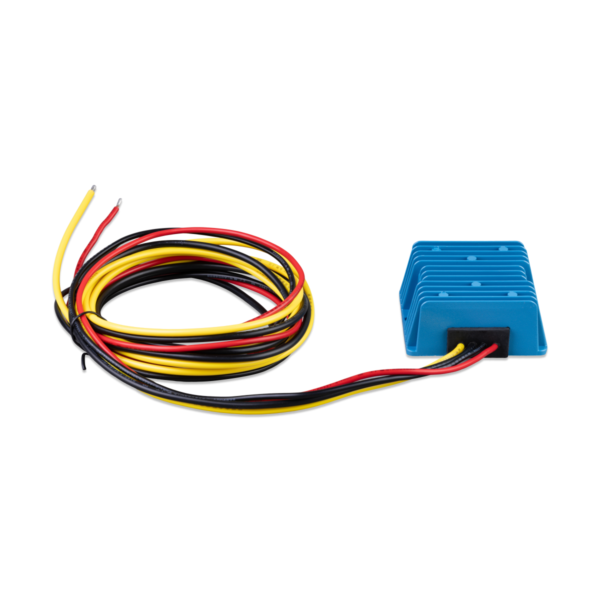

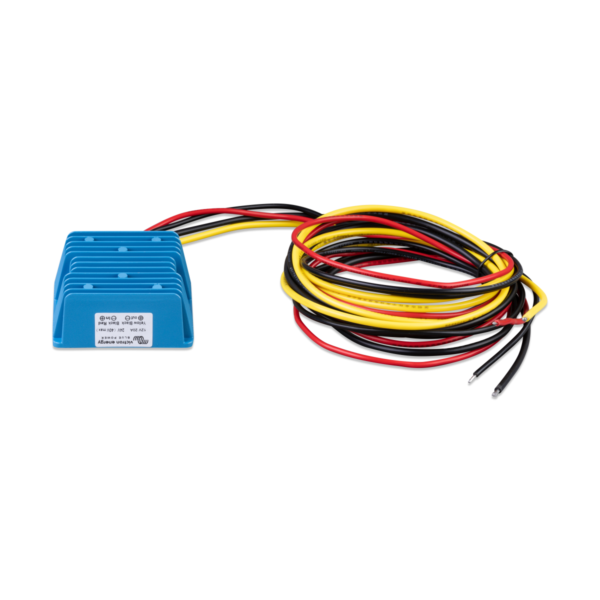

Orion IP67 24/12-20A (240W)
$ 218.960 Incluye IVA
Incluye IVA
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Available in 5 models

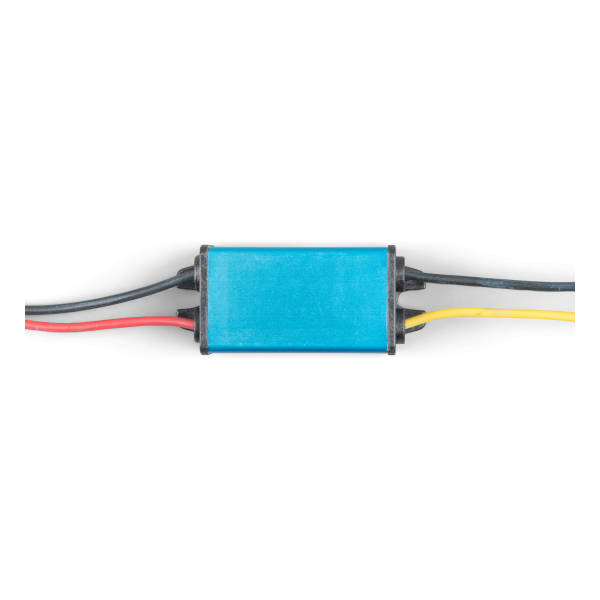

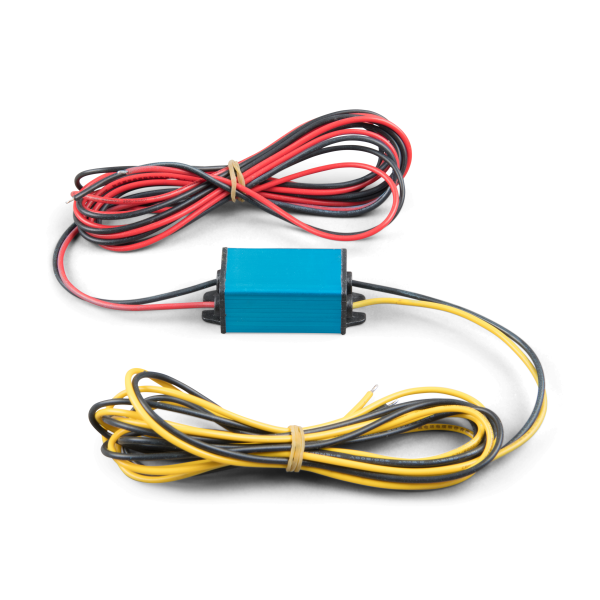

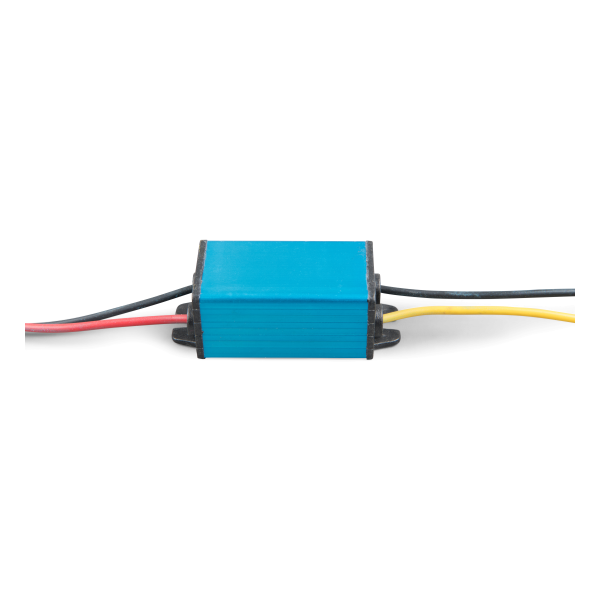

Orion IP67 24/12-5
Orion IP67 24/12-10
Orion IP67 24/12-20

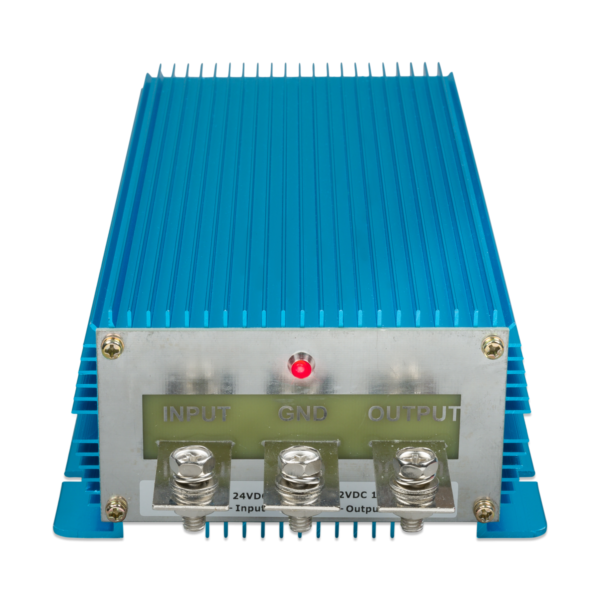

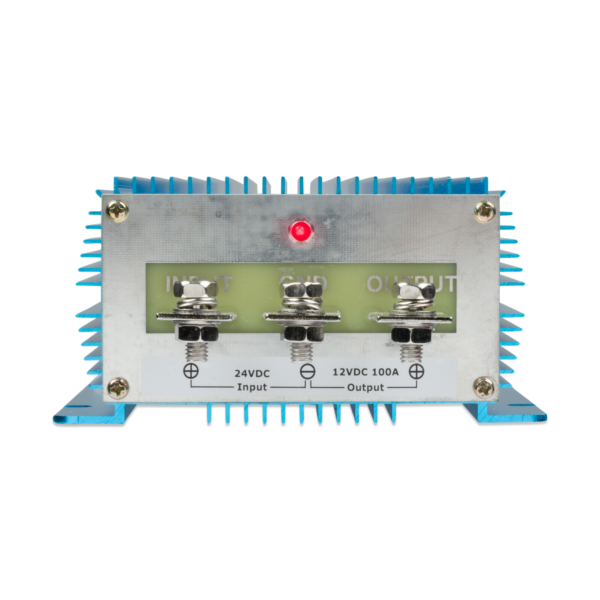

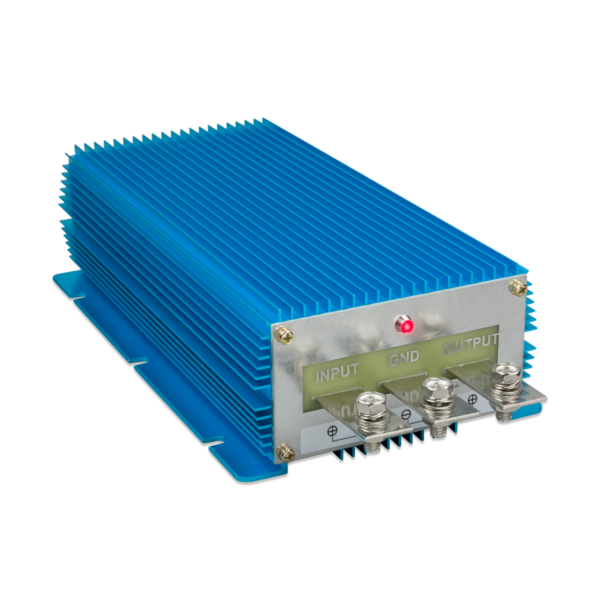

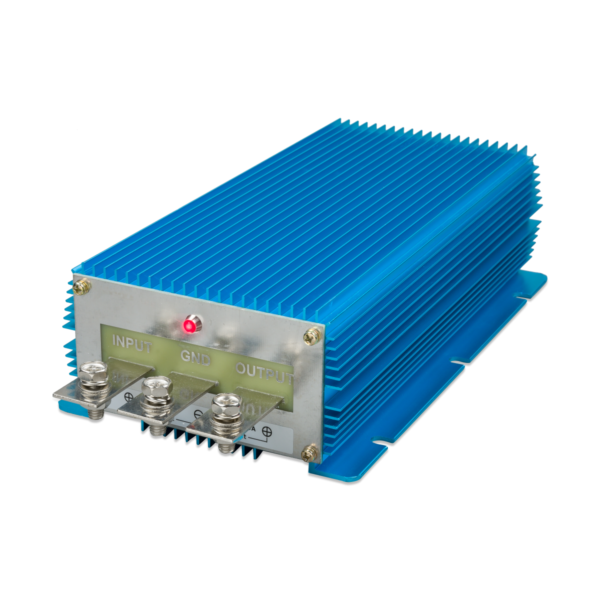

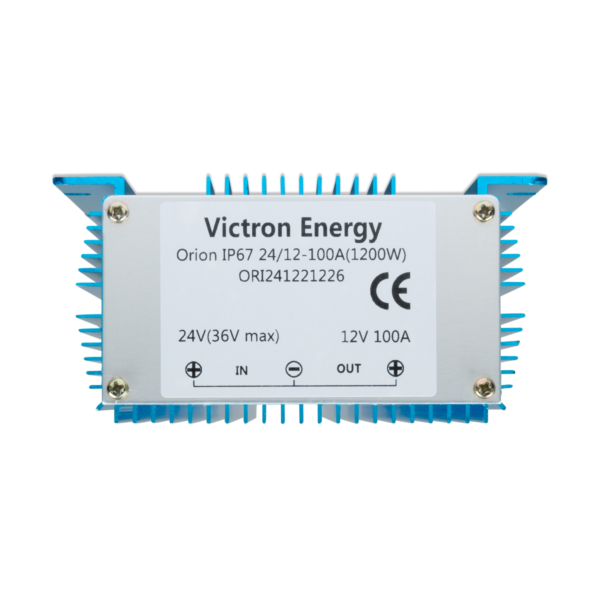

Orion IP67 24/12-100

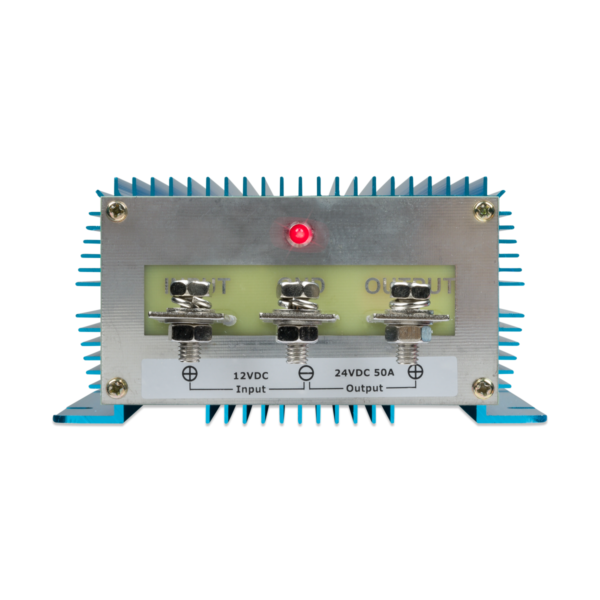

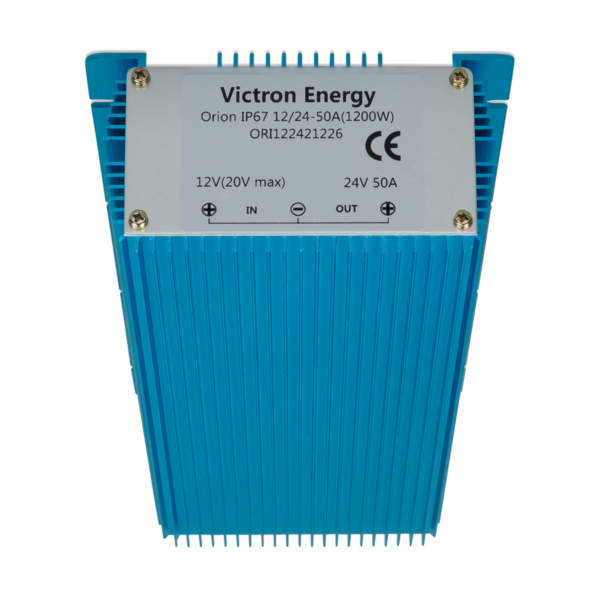

Orion IP67 12/24-50
| Peso | 1,1 lbs |
|---|---|
| Dimensiones | 6,5 × 6,5 × 1,3 in |
| Input Voltage Range | [15, 40] V |
| Under Voltage Shutdown | 13 V |
| Under Voltage Restart | 14 V |
| Output Voltage | 12 V |
| Output Voltage Tolerance | 3 % |
| Ripple And Noise | 0.075 Vmpp |
| Cont Output Current Rating40 | 20 A |
| Output Derating Above40 | 3 % |
| No Load Current Consumption | 50 mA |
| Max Efficiency | 95 |
| Protections | Short-circuit proof,Overload,Reverse polarity (fuse) |
| Colour | Blue (RAL 5012) |
| Material | Aluminium |
| Weight | 0.3 kg |
| Height | 74 mm |
| Width | 74 mm |
| Depth | 32 mm |
| Safety | EN 60950 |
| Emission | EN 55014-1,EN-IEC 61000-6-3 |
| Immunity | EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
