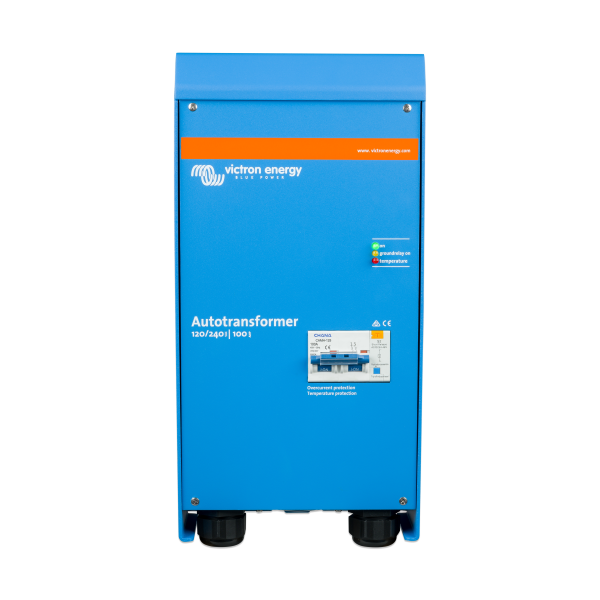

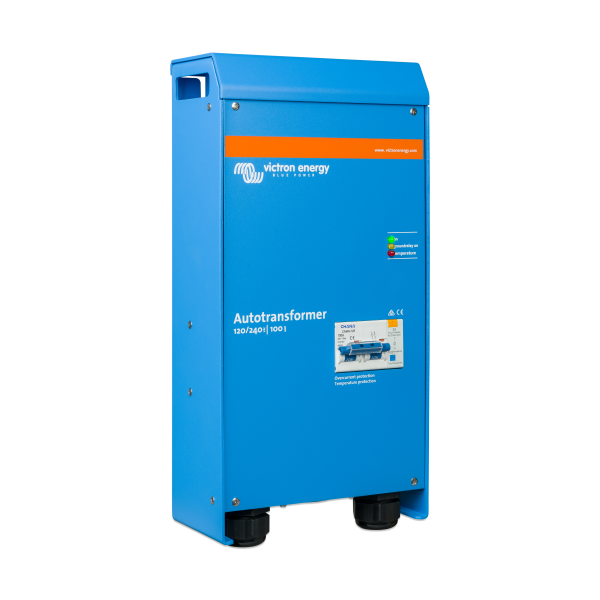

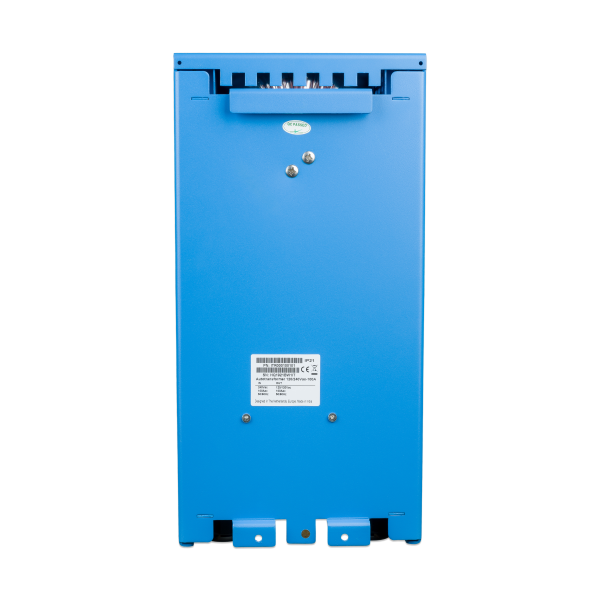

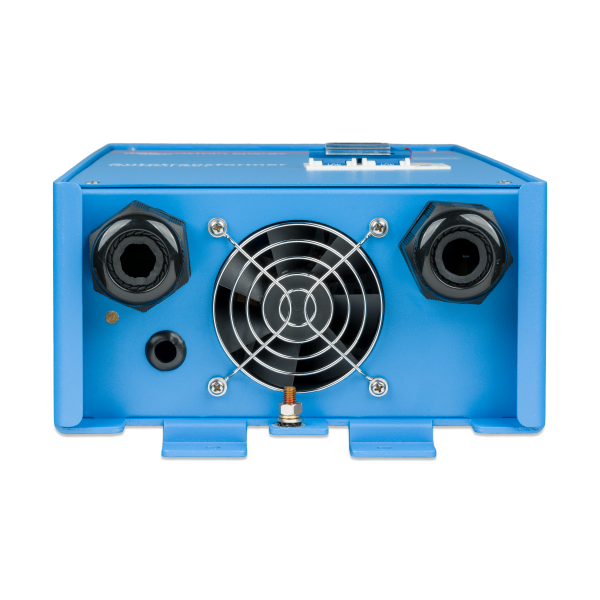

Autotransformer 120/240V-100A
$ 2.491.860 Incluye IVA
Incluye IVA
AvailableShips next business day
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
- Money Back Guarantee
An Autotransformer can be used for step up, step down and split phase output balancing purposes.
While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention.
| Peso | 30 lbs |
|---|---|
| Dimensiones | 12,6 × 19,7 × 7,9 in |
| Ac Input Voltage | 120 VAC |
| Ac Output Voltage | 240 VAC |
| Input Circuit Breaker | 100A, Two Pole |
| Frequency | [50, 60] Hz |
| Max AC Feed Current240 V AC | 100 A |
| Neutral Current30m | 32 A |
| Neutral Power Rating30m | 3,800 VA |
| Neutral Current Cont | 28 A |
| Transformer Type | Toroidal |
| Material | Aluminium |
| Protection Category | IP21 |
| Weight | 13.5 kg |
| Height | 425 mm |
| Width | 214 mm |
| Depth | 110 mm |
| Safety | EN 60076 |
